Robotic MIG & TIG Welding Services

Welding is integral to many modern products. When you want it done right, you turn to the experts: Angola Wire. Combining today’s welding techniques with the safety, speed, and precision of robotics, our robotic MIG and TIG welding capabilities can complete your project faster and more efficiently while maintaining strict quality standards.

Request a Quote

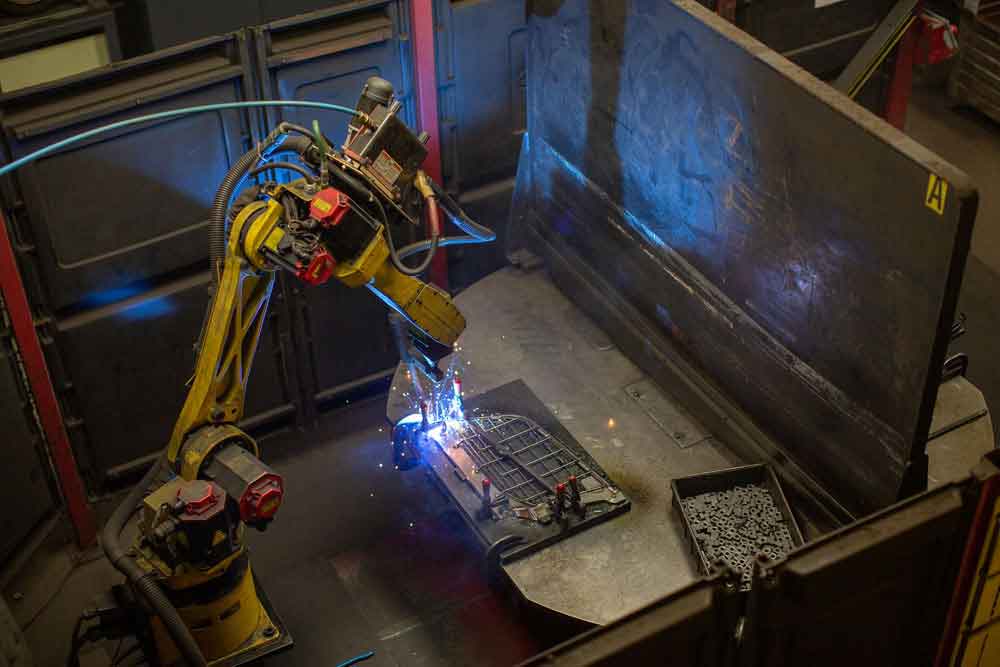

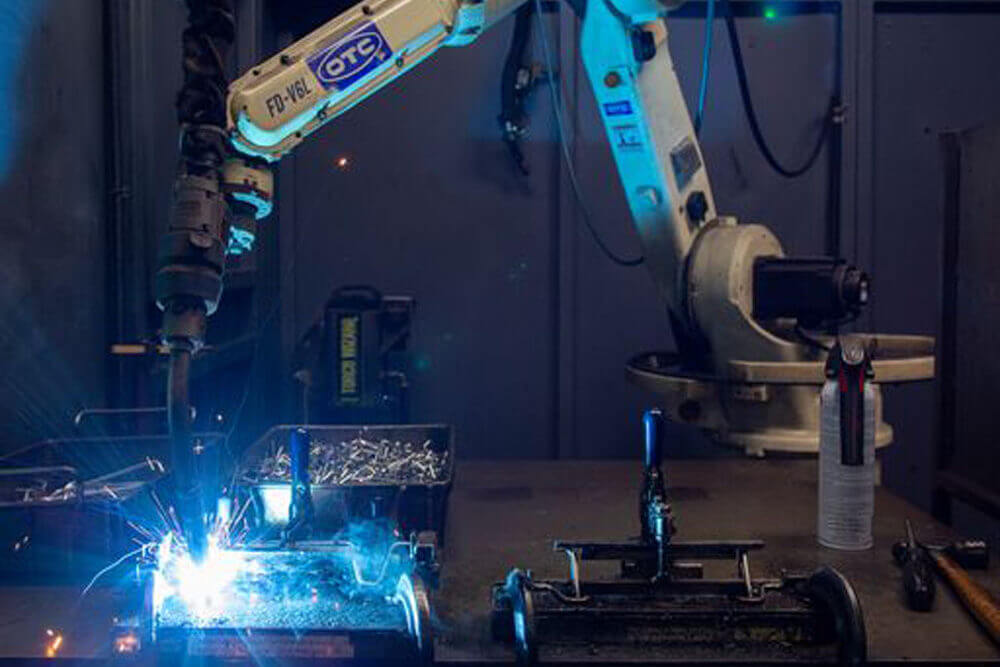

Automated Robotic Welding

Angola Wire’s robotic wire welding services use programmable robotic arms to perform welding tasks faster with remarkable precision. We integrate advanced sensors, software, and control systems to offer a level of accuracy and consistency that surpasses manual methods — the robotic arms used in these processes can execute complex weld patterns, handle intricate geometries, and adapt to various materials.

Robotic MIG Welding Services

The “MIG” in robotic MIG welding stands for “metal inert gas.” This arc welding technique uses a consumable wire electrode to bind two metal pieces together. During this process, a gas shield protects the welding area from airborne contaminants, welding fumes, paint, oil, and particulates.

Our robotic MIG welding service delivers critical benefits:

  • Faster welding
  • Greater efficiency
  • Improved safety

Our automated metal inert gas (MIG) welding robots continuously feed a consumable wire electrode through the welding gun and create an electric arc between the wire and the base metal, generating heat and forming the weld pool. A shielding gas, typically a mixture of argon and carbon dioxide, flows around the weld area to protect it from airborne contaminants, welding fumes, paint, oil, and particulates.

Robotic MIG welding produces strong, durable welds and is ideal for high-volume production; the continuous wire feed allows for fast welding on thick materials. Our robots precisely control wire feed speed, arc length, and movement along the weld joint for consistent results.

Robotic TIG Welding Services

Robotic tungsten inert gas (TIG) welding uses a non-consumable tungsten electrode to generate an electric arc. A separate component feeds filler material into the weld pool if necessary. Pure argon gas or a helium mixture safeguards the weld from atmospheric contamination. Robots equipped with TIG torches control arc length, travel speed, and filler material deposition with exceptional accuracy.

TIG welding has its own advantages:

  • Better accuracy
  • Enhanced weld strength
  • Cleaner welding process

Robotic TIG welding is particularly suited for applications requiring intricate or high-spec welds with complex geometries. While TIG welding is slower than MIG, the enhanced control and weld quality justify its use in applications where precision is more important than speed.

Our Fleet of Welding Robots

MIG Welding Robots

ROTA-ARC 250

The ROTA-ARC 250 is designed for small to medium-sized parts with a 3-axis rotary positioner with dual headstock/tailstock stations.

  • Payload: Up to 250 kg
  • Span: 1,500 mm
  • Index: Avg. 5 sec
  • Welbee II advanced welding power source
  • Compact footprint

ROTA-ARC 500

The ROTA-ARC 500 is similar to the 250 model but engineered for heavier workloads.

  • Payload: 500 kg per side
  • Span: 1,500 mm
  • Index: Avg. 5 sec
  • Suitable for complex parts in confined spaces

SERVO-ARC 720B

The SERVO-ARC 720B system is equipped with a servo-controlled positioner and a 72-inch tabletop.

  • Work Capacity: 250 kg per side
  • Index (180°): 4.2 sec
  • Floor-mounted safety fencing with arc flash curtains
  • FD-V8L robot manipulator
  • Welbee power source

2-FANUC Cobots

The 2-FANUC features cobots (collaborative robots) on custom weld tables and offers a flexible and efficient solution for welding applications.

  • Payload: 10kg
  • Reach: 1,249 mm/1,418 mm
  • Easy setup and programming
  • User-friendly interface
  • Contact detection

TIG Welding Robots

ECO-ARC 200

The ECO-ARC 200 is an economic robotic welding cell for medium to high production volume requiring little or no part positioning.

  • Stationary tables
  • Welbee II advanced welding power source
  • Full perimeter safety guarding with arc-flash protection
  • Compact footprint
  • TIG and MIG capabilities

ECO-ARC 200L

The ECO-ARC 200L is a variation of the ECO-ARC series, featuring two stationary tables with a long-reach robot manipulator.

  • FD-V8L robot manipulator
  • FD21 control cabinet
  • Steel tubular frame assembly
  • Floor-mounted safety fencing with arc flash curtains
  • TIG and MIG capabilities

Robotic MIG & TIG Welding Services From Angola Wire

At Angola Wire, we strive to produce top-quality products that meet the most complex and exacting specifications. Contact us today to request a quote on our robotic MIG & TIG welding services.
